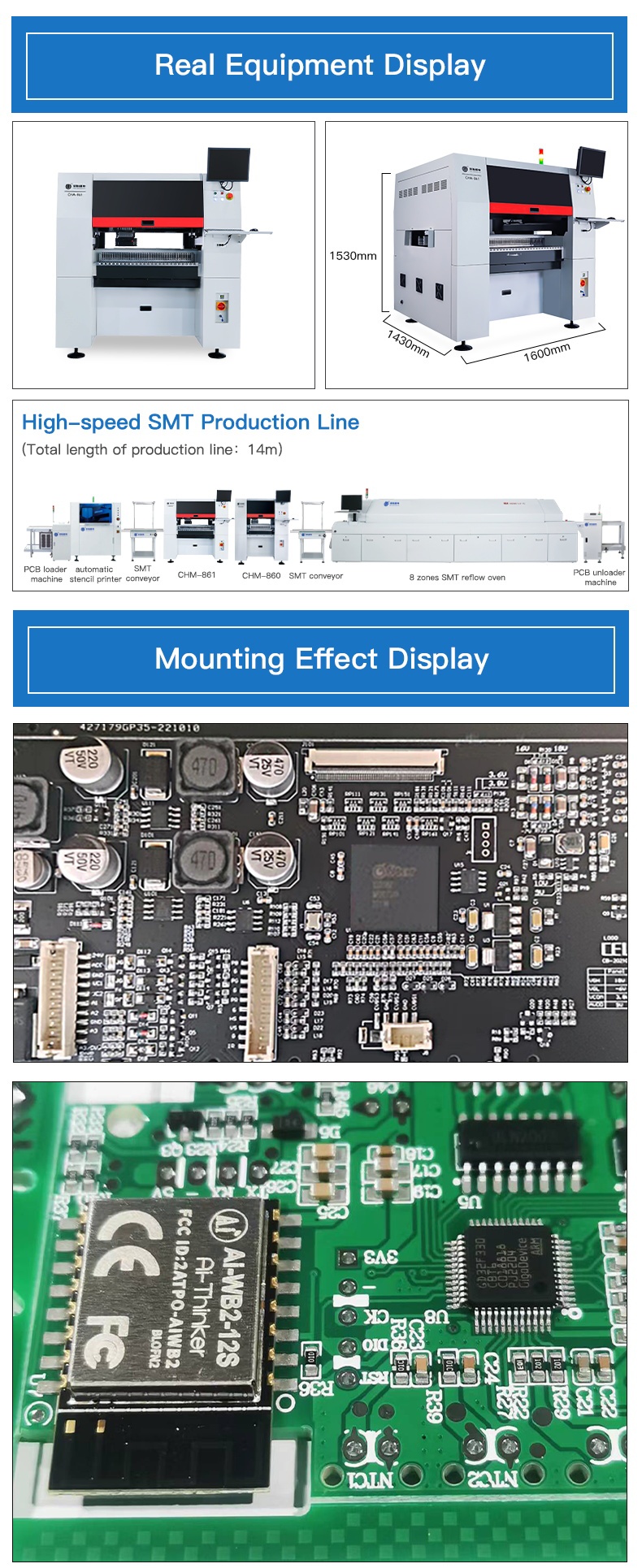

Dimensions

1600mm(L)×1430mm(W)×1530mm(H)

Weight

1600kg

Power Supply

AC380V   (50Hz, three phase), 4.5kW

Air Supply

0.5MPa ~0.7MPa

Vacuum Generation

Built-in   vacuum pump

Mounting   Head Quantity

8

Mounting Speed

33100cph   (optimal)

Mounting   Accuracy

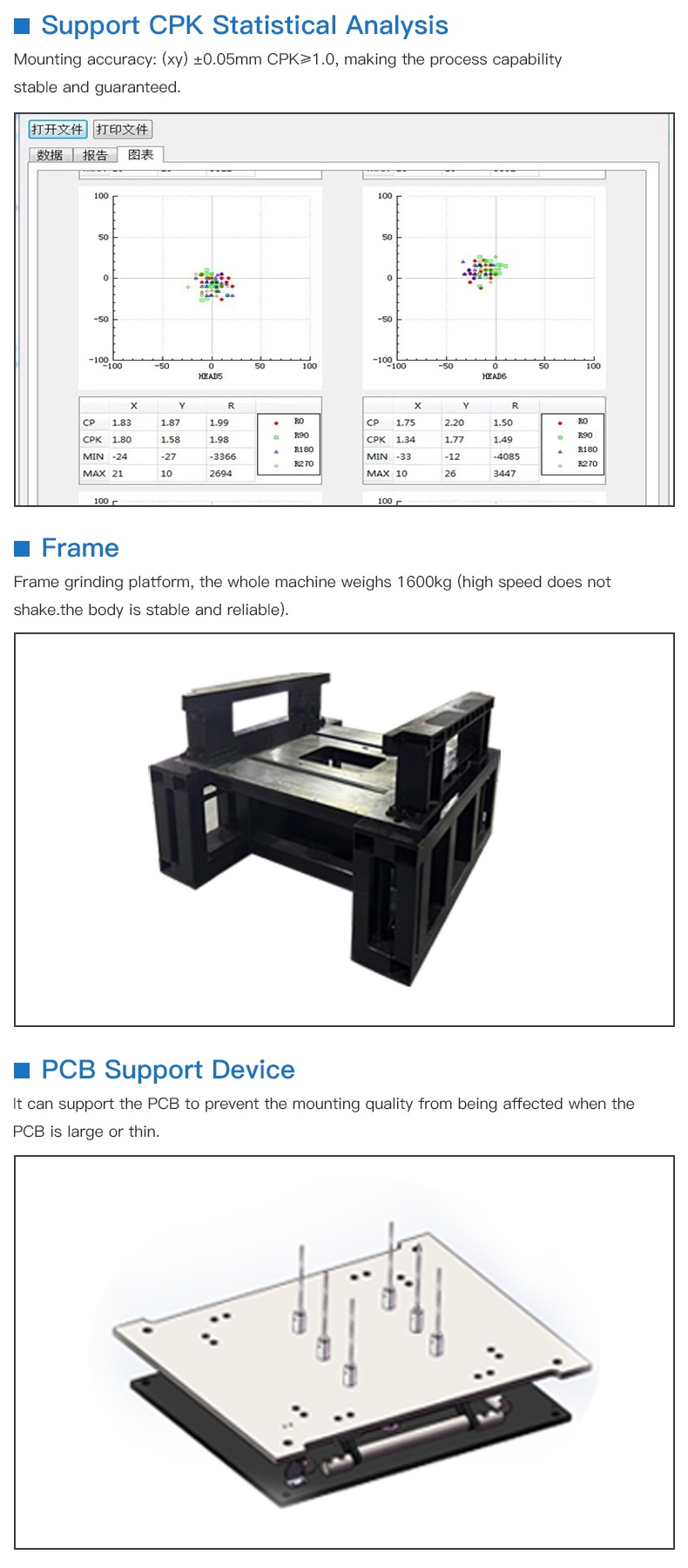

（XY）±0.05mm  CPK≥1.0

Component Height

≤12mm

Component   Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC,   etc.)

PCB Thickness

0.6mm~3.5mm

PCB Size

450mm(L)×350mm(W) (standard);

1200mm(L)×350mm(W) (optional)

PCB Conveying

3-section-rail   automatic conveying, PCB support

Nozzle   Change

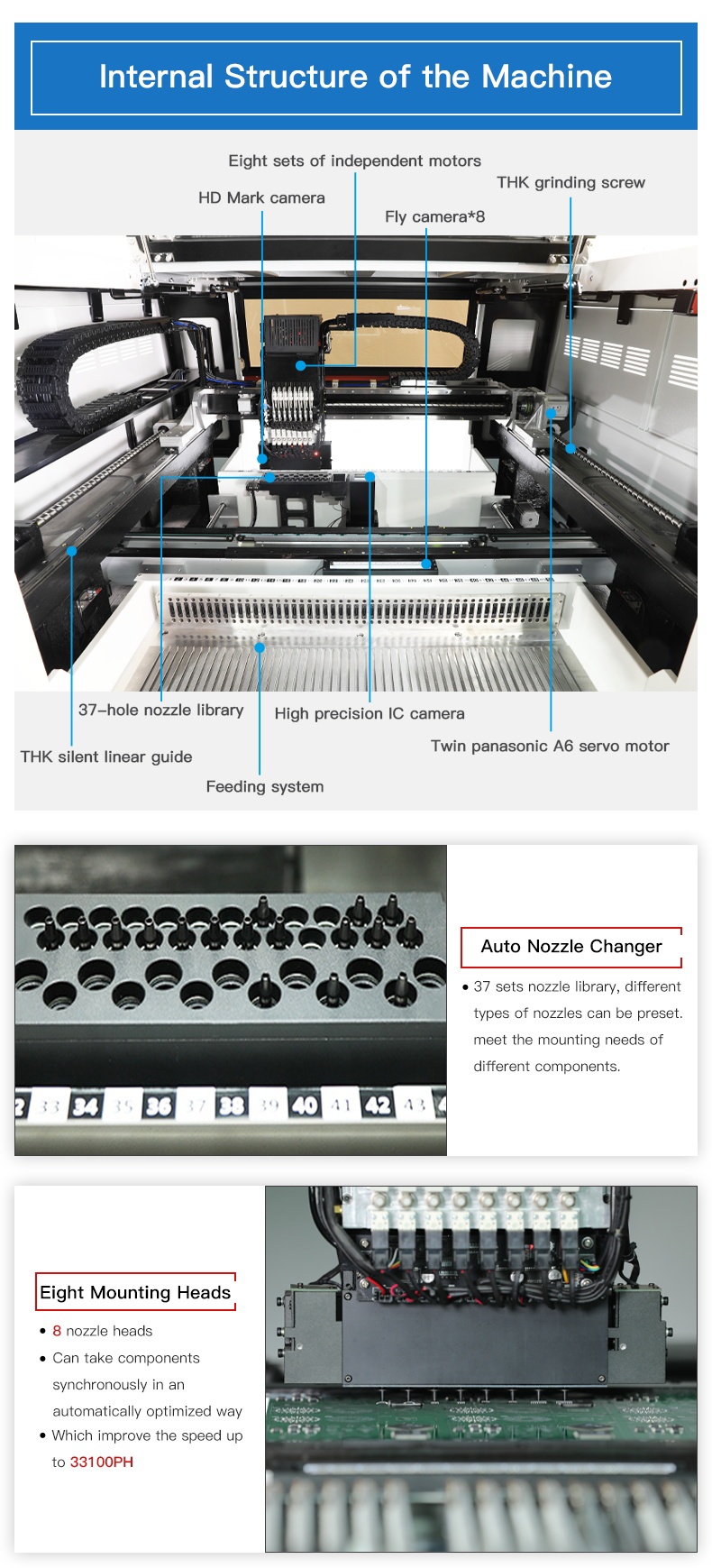

Automatic nozzle change (37-hole   nozzle library)

Control System

Built-in   industrial computer (Windows 7)

equipped   with monitor, keyboard, and mouse

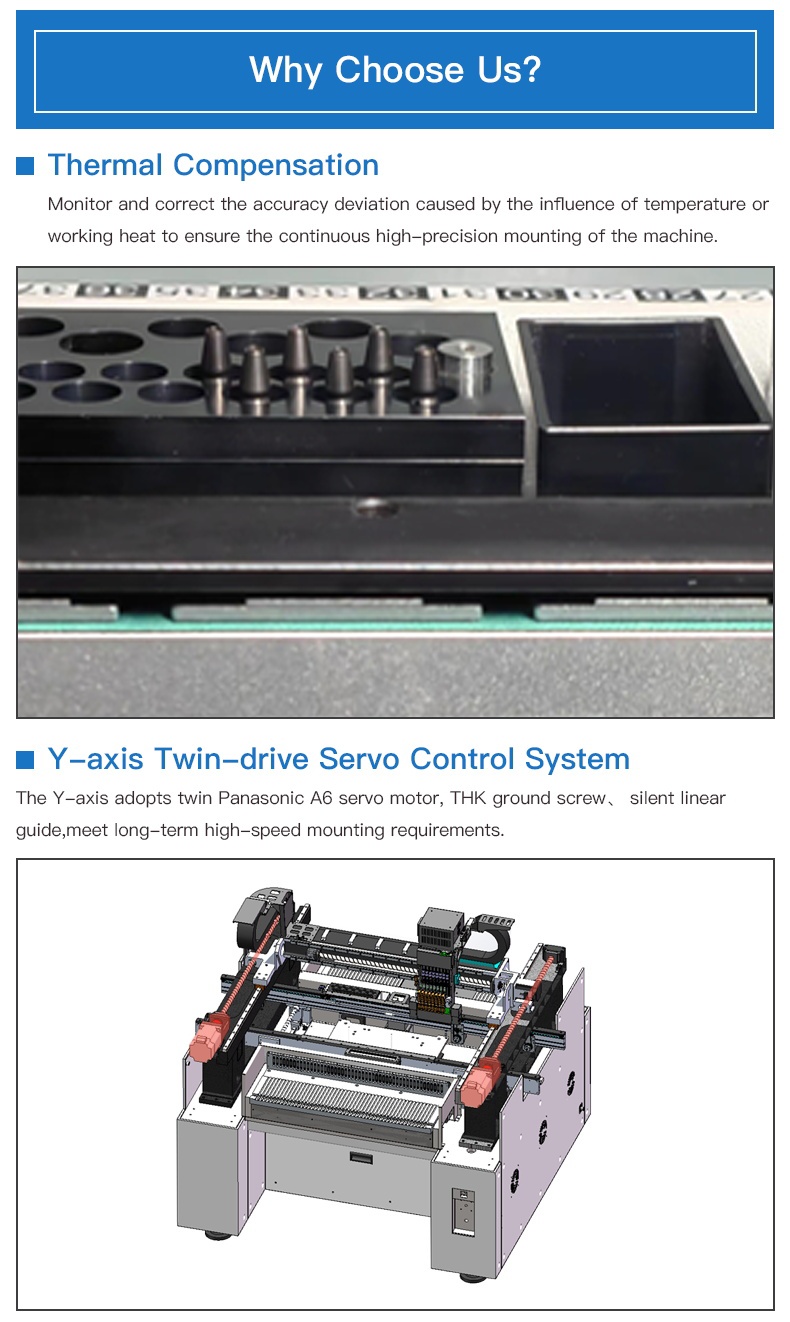

Drive System

X&Y axis driven by Panasonic A6   servo motors (Y axis by double motors); adopting flexible S-curve   acceleration and deceleration

Transmission System

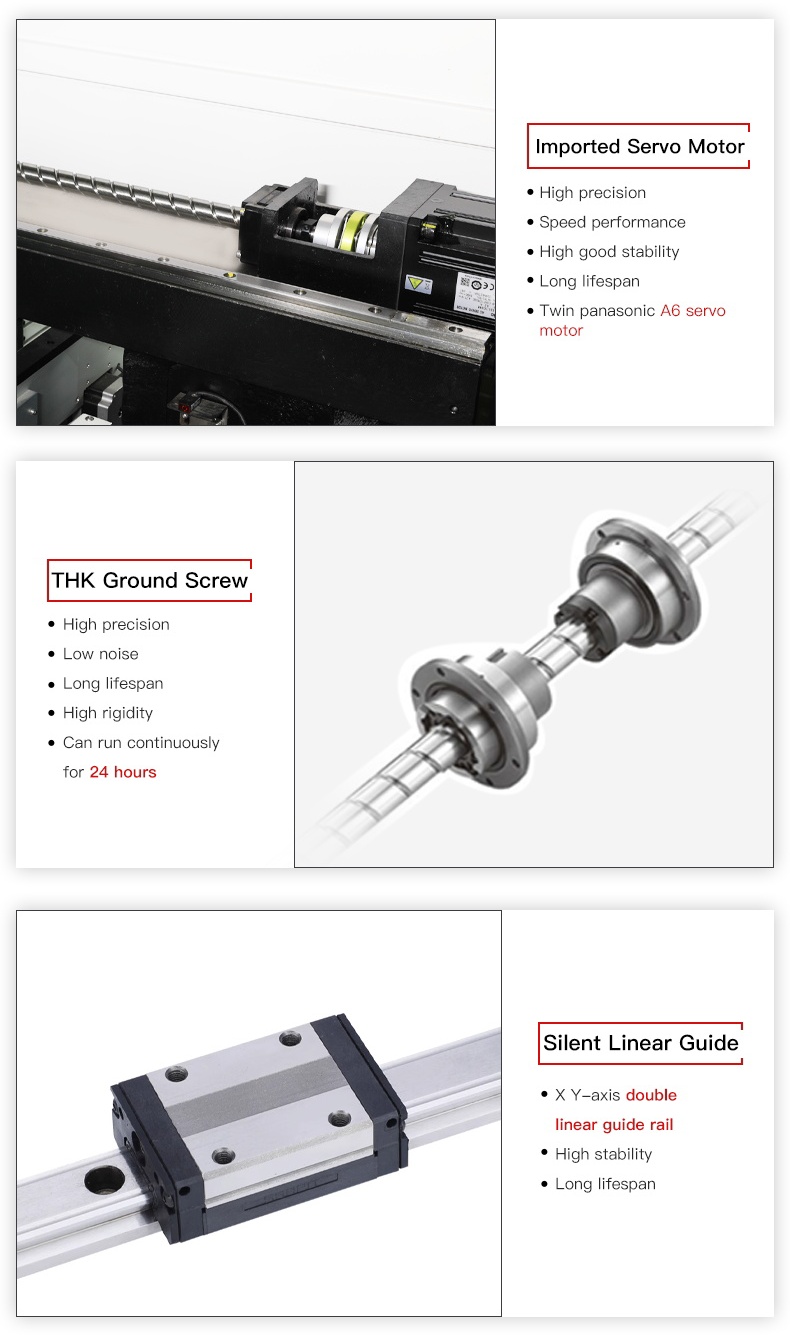

X&Y   axis adopting THK ground ball screw and THK mute linear guide (Y axis with   double screws)

Feeding System

100 NXT 8mm   standard feeder stacks

(also   suitable for IC tray and stick feeder)

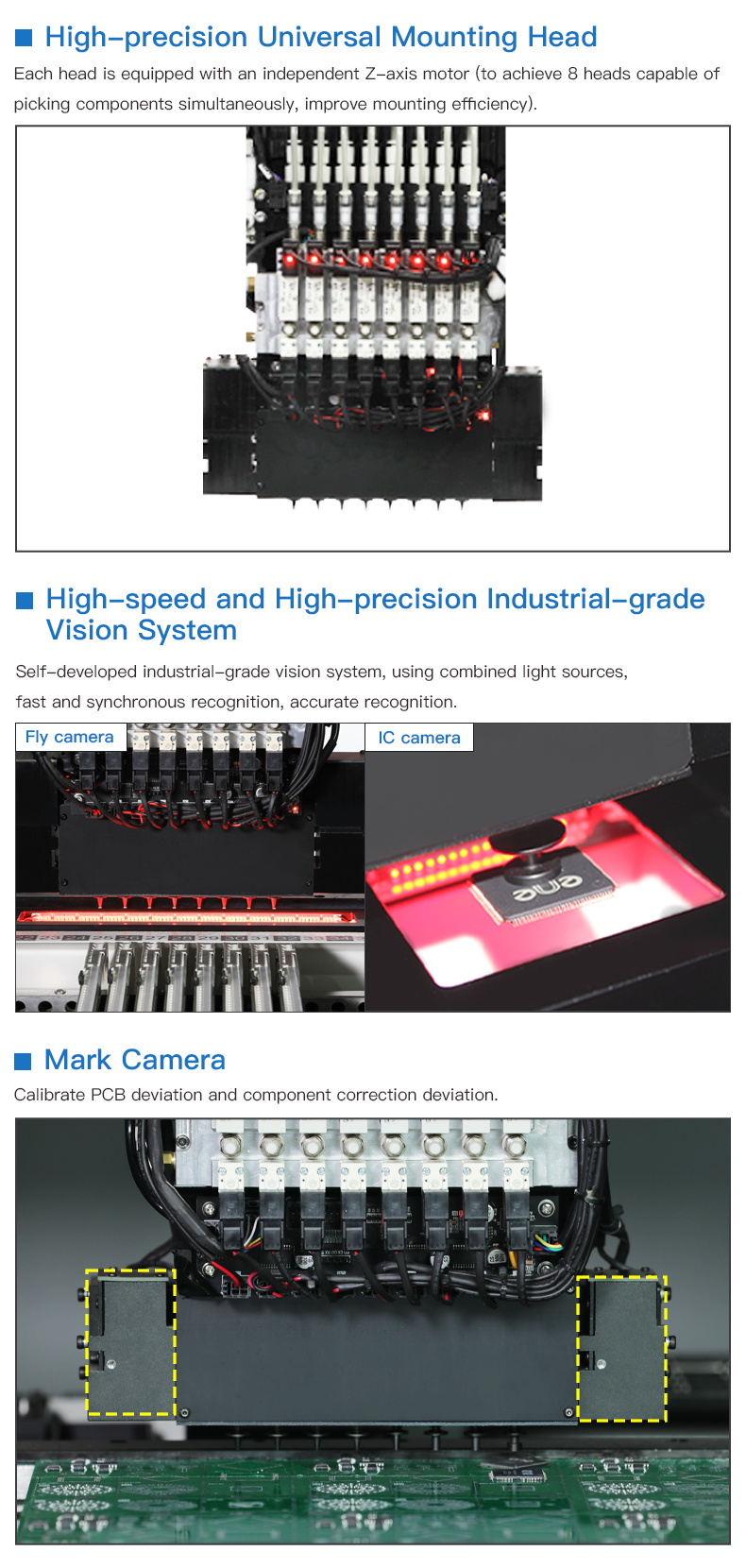

Vision System

Fly camera×8 (component size   applicable: 16mm×16mm);

IC camera×1 (component size   applicable: 36mm×36mm);

Mark camera×2
