This is CHM-650, a high-speed and good-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.
CHM-650 Pick and Place Machine is characterized by 50 feeder stacks, 4 heads capable of 360-degree rotation,
support for Yamaha pneumatic feeders ,stick feeders with tubular components, automatic correction to pick components,
integrated operation with built-in industrial computer.

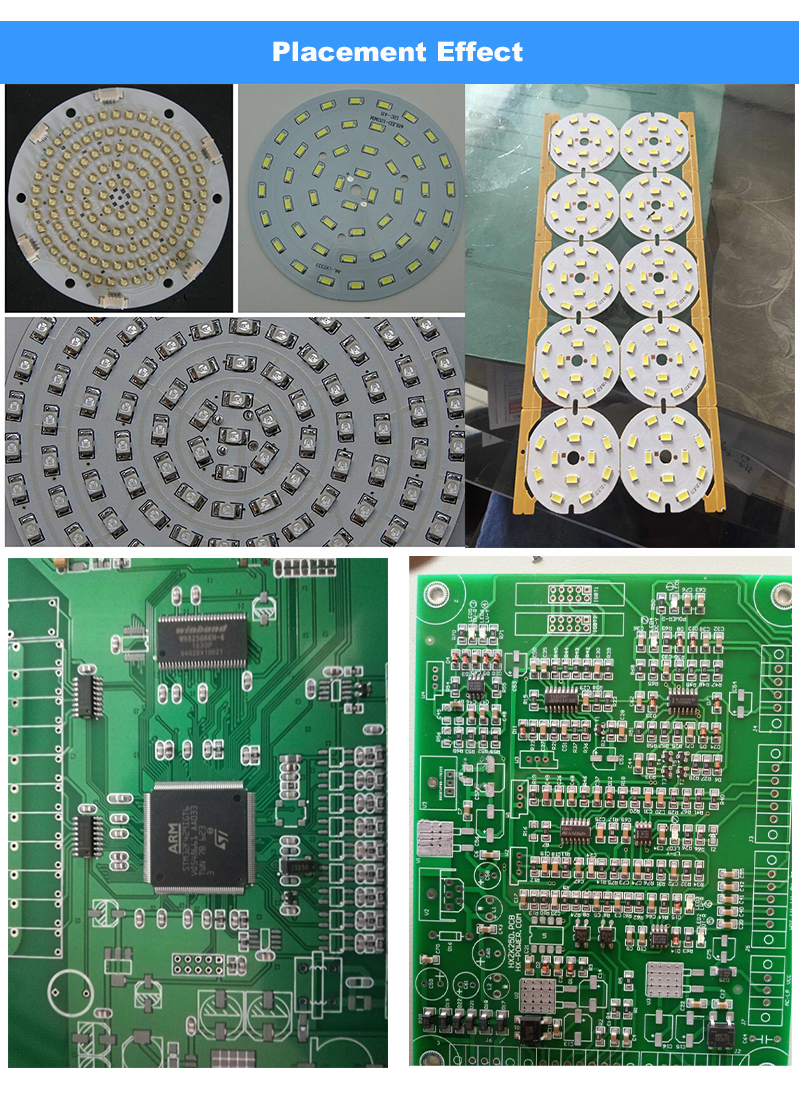

CHM-650 Parameters
| CHM-650 Specifications | |
| Dimensions | 1280mm(L)×1190mm(W)×1050mm(H) |
| Weight | 310kg |
| Power Supply | AC220V (50Hz, single phase), 2.1kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |
| Mounting Head Quantity | 4 |
| Mounting Speed | 9000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×4 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
